Bandwidth - Monthly

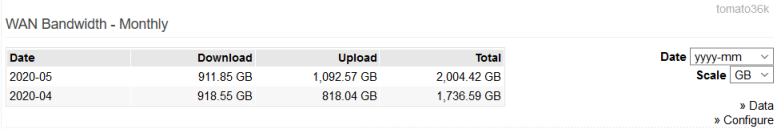

The Bandwidth - Monthly menu displays bandwidth volume over a one month period. This starts the first day at 00:00:00 and ends the last day at 23:59:59.

The display is split into Download, Upload and Total (combined) volumes.

NOTE: in MultiWAN configurations, FreshTomato will display only traffic on the primary WAN.

Date: lets you select the way dates will be formatted in the display.

Scale: defines the volume scale to be used in the display:

  • KB - displays bandwidth volumes in KB.
  • MB - displays bandwidth volumes in MB.
  • GB - displays bandwidth volumes in GB.

» Data: Clicking this displays data in .csv file format, directly in a web browser.

» Configure: This shortcut leads to Bandwidth Monitoring where you can configure settings such as data retention.
