The Bandwidth - Weekly menu displays the amount of data transferred weekly through the WAN interface. Data are divided into Download, Upload and Total (combined) volumes.
When FreshTomato is in a MultiWAN configuration, it will display only traffic on the primary WAN.
Summary
Show:

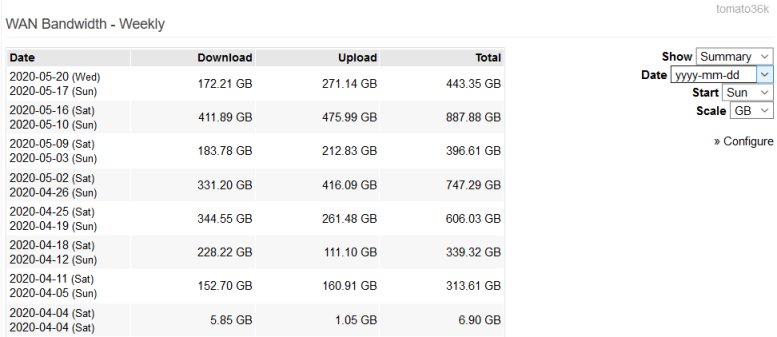

Summary - the table displays only a total weekly volume.

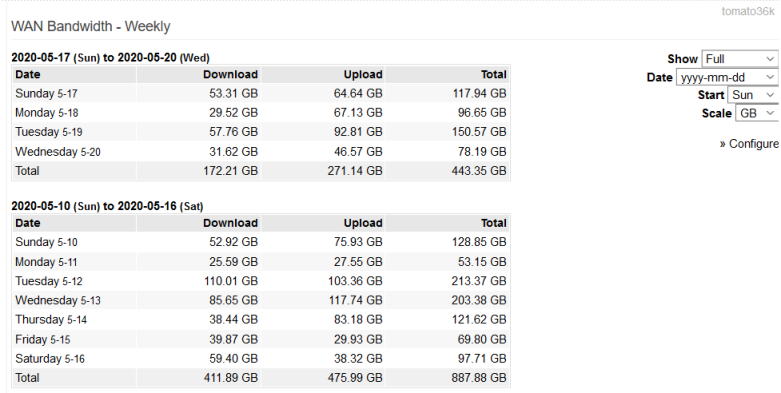

Full - the table displays each day's volume, and a total weekly volume.
Full
Date: lets you select the format in which dates are displayed.
Start: lets you define the first day of the week.
Scale: specifies in which units volumes will be displayed.
KB - This settings causes data volumes to be displayed in KB.
MB - This setting causes data volumes to be displayed in MB.
GB - This setting causes data volumes to be displayed in GB.
>> Configure:clicking this takes you to Bandwidth Monitoring, where you can configure settings for it.
