IP Traffic - Monthly

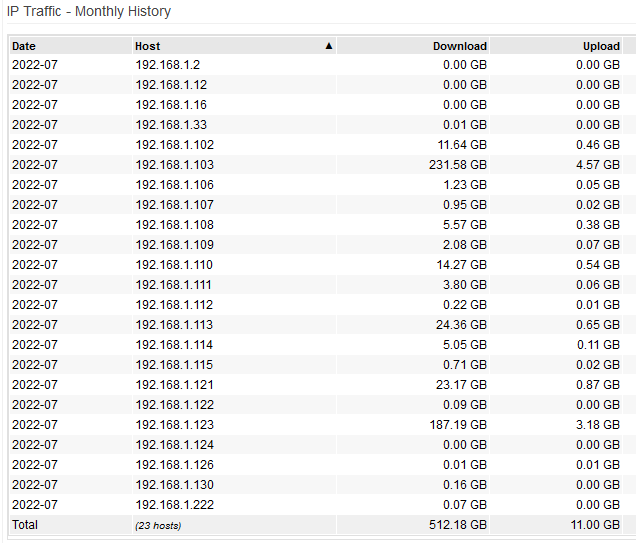

The IP Traffic - Monthly menu shows, in detail, the monthly bandwidth usage history per IP address.

The table can be sorted in increments or decrements by [re]clicking on the header of your choice. If hostnames are shown, the host column will be sorted alphabetically. The last line of the table show the total usage of the host listed on that line.

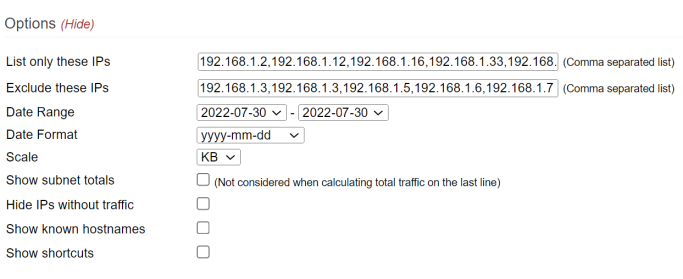

The table can be customized with these options:

List only these IPs: Only IP addresses listed here will be included in the table. Addresses must be separated by commas.

Exclude these IPs: IP addresses listed here will be excluded from the table. Addresses must be separated by commas.

Date Range: Here, you can select which days you want listed in the table. Choose “Any” to show all the saved data.

Date Format: This lets you select the preferred format for displaying the date.

Scale: This defines the scale to be used in the reporting. Choices include:

  • KB
  • MB
  • GB

Show subnet totals: Choosing this will display subtotals by subnet.

Hide IPs without traffic: Enabling this will hide any host which uses zero bandwidth.

Show known hostnames: Enabling this will show known hostnames beside the IP address in the Host column.

Show shortcuts: Enabling this shows shortcuts to other settings under the Host/IP addresses shown in the Host column.

  • [qosdetails] - Enabling this allows you to view QoS Details.
  • [qosrates] - Enabling this allows you to view transfer rates per connection.
  • [iptraf] - Enabling this lets you view real-time IP Traffic for this address.
  • [hide] - Enabling this allows you to hide this address on the display.

Data: This displays data in the web browser in .csv file format. There, you may choose to save it to local disk.

Configure: This shortcut takes you to the IP Traffic Monitoring menu to configure data retention and other settings.

Refresh: Clicking on this forces an immediate refresh of the graph data.
