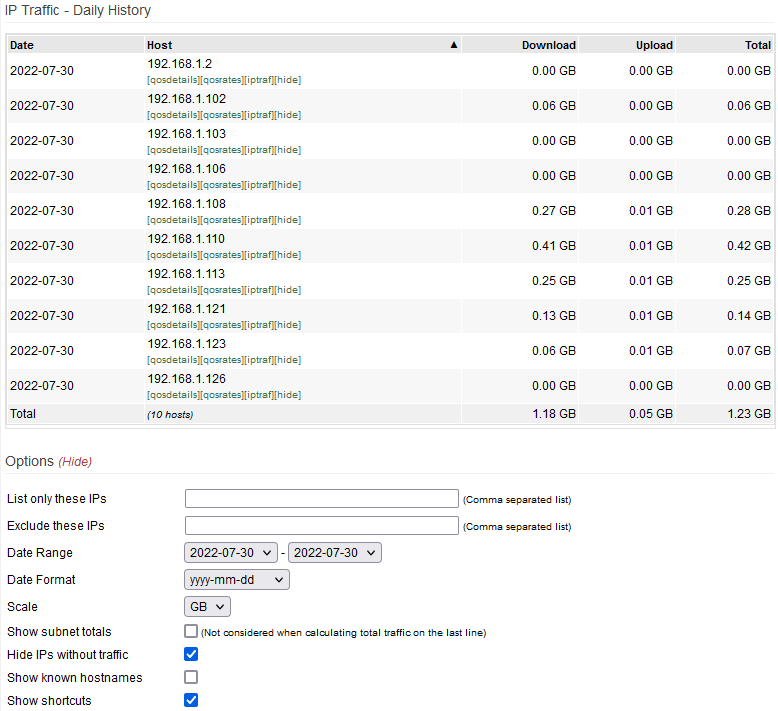

The IP Traffic - Daily menu shows details of daily bandwidth usage history per IP address.

Clicking or reclicking any column header will sort the table in increments or decrements. If hostnames are shown, the host column will be sorted alphabetically. The last line of the table shows total usage of the host listed on that line.

The table can be customized with these options:

List only these IPs: Only IP addresses here will be included in the table. Addresses must be separated by commas.

Exclude these IPs: IP addresses here will be excluded from the table. Addresses must be separated by commas.

Date Range: Here, you can select which days to be listed in the table. Choose “Any” to show all the saved data.

Date Format: This lets you select the preferred format for displaying the date.

Scale: This defines the scale to be used in the reporting. Choices include:

• KB
• MB
• GB

Show subnet totals: Choosing this will display subtotals by subnet.

Hide IPs without traffic: Enabling this will hide any host which uses zero bandwidth.

Show known hostnames: Enabling this shows known hostnames beside the IP address in the Host column.

Show shortcuts: Enabling this shows shortcuts to other settings under the Host/IP addresses shown in the Host column.

• [qosdetails] - Enabling this allows you to view QoS Details.
• [qosrates] - Enabling this allows you to view transfer rates per connection.
• [iptraf] - Enabling this lets you view real-time IP Traffic for this address.
• [hide] - Enabling this allows you to hide this address on the display.

Data: Displays data in the web browser in .csv file format. There, you may choose to save it to local disk.

Configure: This shortcut takes you to IP Traffic Monitoring to configure data retention and other settings.
