This menu displays detailed IP Transfer Rate data for each client IP address. The Transfer Rates section displays a table of detailed client transfer rate data, categorized in various ways.

The Options section contains the configuration settings for the IP Traffic - Transfer Rates table.

The IP Traffic - Transfer Rates section displays a table, showing detailed transfer rate data. On each row is an client IP address.

For each client IP address, the columns display:

• Download Transfer Rate
• Upload Transfer Rate
• TCP IN/OUT (packets per second)
• UDP IN/OUT (packets per second)
• ICMP IN/OUT (packets per second)
• TCP connections (number of)
• UDP connections (number of)

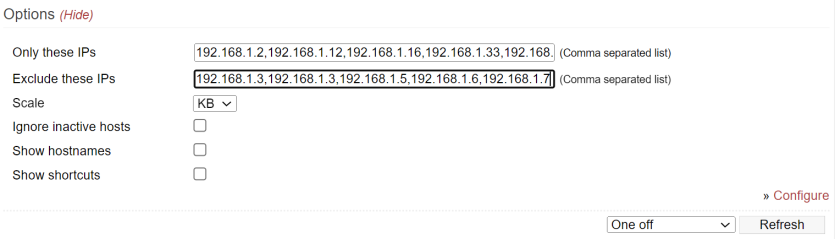

This section has settings for the Transfer Rates table. These control which client addresses are monitored, and how the table displays traffic.

(Click Here to Show): clicking this reveals settings options for the Transfer Rates table.

Only these IPs: enter addresses of hosts whose IP Traffic you want displayed (comma-separated).

Exclude these IPs: enter client addresses whose IP Traffic you don't want displayed (comma-separated).

Scale: here, you can select the measurement units used to display traffic.

Choices include:

• KB
• MB
• GB

Ignore inactive hosts: enabling this removes inactive IP client hosts from the table.

Show hostnames: makes FreshTomato show hostnames in IP Traffic displays for all IP clients.

Show shortcuts: shows shortcuts to settings under the Host/IP addresses shown in the Host column.

• [qosdetails] - enabling this lets you view QoS Details.

• [qosrates] - enabling this lets you view transfer rates per connection.

• [iptraf] - enabling this lets you view real-time IP Traffic for this address.

• [hide] - enabling this lets you hide this IP address on the display.

Configure: takes you to IP Traffic Monitoring, where you can configure general IP Traffic Monitoring settings.

Refresh Every: lets you choose the automatic refresh interval (how often Transfer Rates table updates).

Refresh: immediately refreshes the Transfer Rates table.
