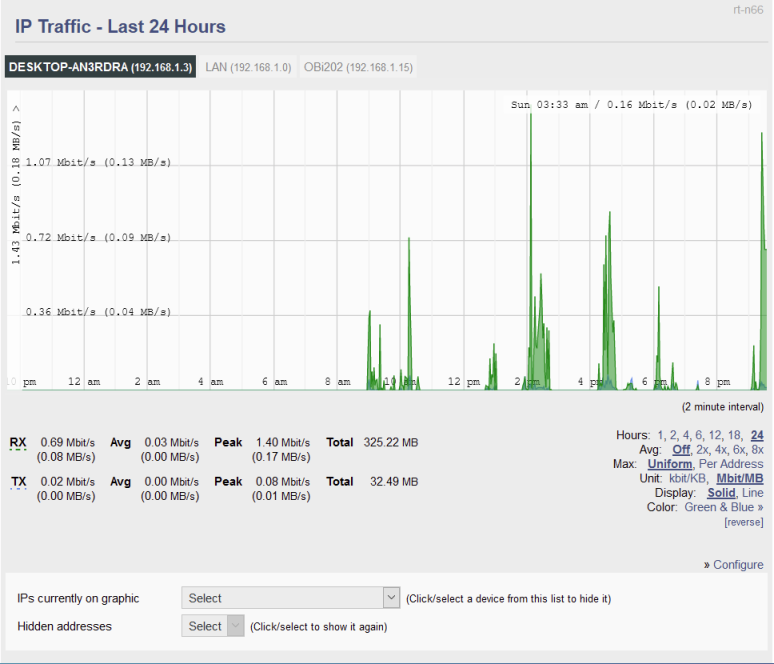

IP Traffic - Last 24 Hours

The IP Traffic - Last 24 Hours menu displays bandwidth used on selected network IP addresses/ranges during the last 24 hours. Do not confuse this with the Bandwidth/Last 24 Hours function.


IPs currently on graphic: allows you to select from which IP addresses/ranges you want to display bandwidth data.

Hidden Addresses: In this menu, you can select IP addresses whose bandwidth is currently not displayed to be measured/graphed.

The graph has a 24-hour window with a 2-minute interval. Thus, a maximum of 24 hours of bandwidth data are displayed, refreshed a maximum of every 2 minutes.


RX numbers show incoming bandwidth (to the LAN).

TX numbers show outgoing bandwidth (to the WAN).





Hours:

Avg: This applies a percentile to the image. This shows how a data point compares to the total distribution over time.

Max:

  • Uniform - Choosing this scales graphs to the maximum value recorded on all interfaces.
  • Per If (Per Interface) - Choosing this scales graphs based on data from one interface only.

Unit:

  • kbit/KB - This toggles between displaying volume in kilobits/Kilobytes (1,000).
  • Mbit/MB - This toggles the display to volume to be expressed in megabits/Megabytes (1,000,000).

Display:

  • Solid - Choosing this option graphs bandwidth usage with a solid area.
  • Line - Choosing this option graphs bandwidth using a single line representing maximum values.

Color: This switches between various pre-specified color schemes for the graph.

[reverse]: This reverses the graph's color scheme. For example, a device traced in blue is traced in orange and vice versa.


Configure: Clicking this takes you to the Administration/IP Traffic Monitoring menu. There, you can enable/disable IP Traffic monitoring, and configure settings.


Cursor-Tracking Readout: Bandwidth graphs feature a a Cursor-Tracking Readout.

When you mouse over the graph, the graph displays the following at the top right corner:

  • Day of Week
  • Time
  • Bandwidth usage.

These update as you move your mouse.

The Cursor-Tracking Readout disappears after 5 intervals: that is, 10 seconds in Real-Time, 10 minutes in Last 24 Hours, and so on.


Mouse-Click Readout: Bandwidth graphs also have a Mouse-Click Readout: If you click on the graph, the date/time/bandwidth numbers display beside the mouse cursor. This readout is static. It does not update with graph movement or scaling.
